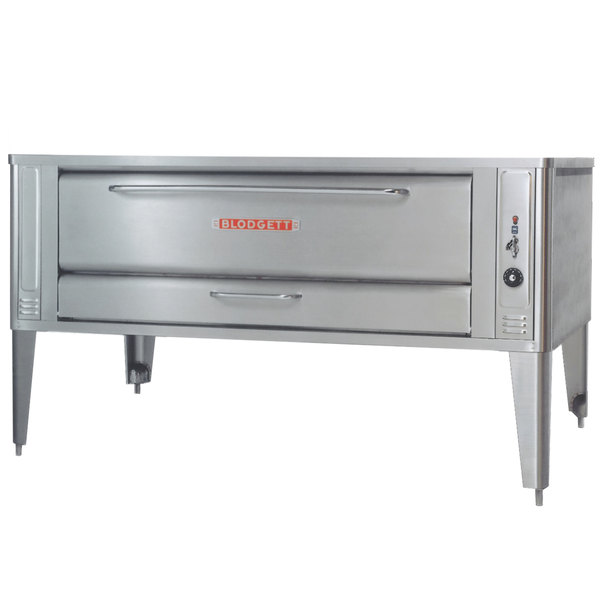

Blodgett Natural Gas Additional Unit Pizza Deck Oven


Model 1060ADDLNAT

Features & Benefits:

  •  Full angle iron frame
  •  Stainless steel front, top, sides and back
  • Spring assist doors with concealed hinges
  •  Heavy chrome plated tubular steel door handle
  •  32″ (794mm) stainless steel legs (for single units)
  • 12″ (273mm) stainless steel legs (for double units)
  • Burner door opens easily for ignition, cleaning or adjustment, without removal of any fastenings
  • Vitreous fiber insulation at top, back, sides, bottom and doors INTERIOR CONSTRUCTION
  • 60″ x 36″ x 10″ (1524mm x 914mm x 254mm) oven compartment interior. 􏰀 Aluminized steel baking compartment liner
    Aluminized steel combustion chamber
    Ultra Rokite deck supported by an angle iron frame
  • Two free-floating, easily removable duplex-tube burners
  • Removable fixed orifices on main and pilot burners
  • Main gas valve, temperature control valve and safety pilot valve fully within
  • section body and are accessible through a covered and ventilated compart-
  • ment in front
  • Air mixers with adjustable air shutters and locking device
  • Snap throttle thermostat with temperature control range of 300°F (150°C) to
  • 650°F (340°C)
  • Fahrenheit dial 300°F to 650°F
  • Ultra Rokite deck
  • Dimensions: W 78 1/16 Inches X D 45 5/16 Inches X H 37 Inches
  • Deck Width 60″ X Deck Depth 36″ X Deck Height 10″
  • Number of 10″ Pizzas (18pizzas)  Number of 14″ Pizzas (8 pizzas)
  • Two year parts and one year labor warranty
  • Five year limited oven door warranty
  • SHIPPING INFORMATION: Approx. Weight: Single: 1050 lbs.
