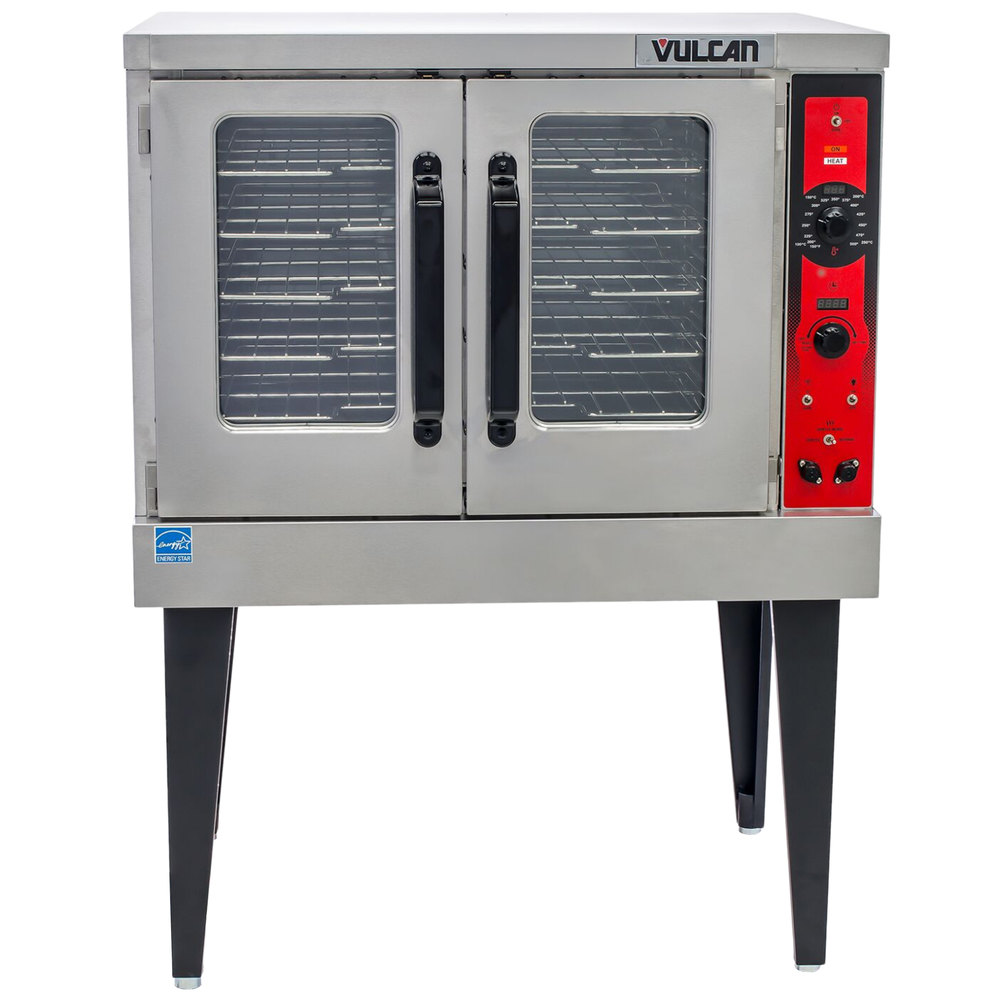

Vulcan Single Deck Full Size Convection Oven Gas
Features & Benefits:
Model: VC5GD-11D1 NAT
- Single section, gas convection oven Vulcan Model No. VC5GD. Stainless steel front, sides and top. Painted legs. Independently operated removable stainless steel doors with double pane windows. Non-sag insulation applied to the top, rear and sides. Porcelain enamel on steel oven interior measures 29″w x 221⁄8″d x 20″h. One interior oven light. Five nickel plated oven racks measure 281⁄4″ x 201⁄2″ with grab-and-go front cut out. Eleven position nickel plated rack guides with positive rack stops. One 50,000 BTU/hr. burner. Electronic spark igniter. Furnished with a two speed 1⁄2 H.P. oven blower-motor. Oven cool switch for rapid cool down. 120 volt, 60 Hz, 1 ph power supply required. 6′ cord and plug supplied. 7.7 amps total draw.
- Exterior Dimensions:
- 40″w x 391⁄4″d (includes motor & door handles) 361⁄2″d (includes motor only) x 543⁄4″h on 233⁄4″ legs with feet. 233⁄4″ legs can be adjusted an additional 1″ in length. Legs with casters are adjustable from 28″ to 291⁄8″ in length.
- CSA design certified. NSF listed.
- Independently operated lift-off stainless steel doors with double pane windows.
- On-board diagnostics for easy servicing
- Stainless steel front, sides and top.
- Five nickel plated grab-and-go oven racks with eleven rack positions.
- Painted legs.
- 5-hour timer with digital display enhancement.
- Cool-to-the-touch handles.
- 50,000 BTU/hr. burner.
- Electronic spark igniter.
- 1⁄2 H.P. two speed oven blower-motor. 120/60/1 with 6′ cord and plug. 7.7 amps total draw.
- Oven cool switch for rapid cool down.
- Porcelain enamel on steel oven interior.
- 3⁄4″ rear gas connection with combination gas valve / pressure regulator and safety solenoid system.
- One year limited parts and labor warranty.
- Three year limited warranty on doors.
